銳馳焊錫機
RuiChi Intelligent Soldering Robot
對每個焊點負責
Be responsible for each weld
技術是焊錫的靈魂，
工程師的制造不過是一場縝密的工藝，
如果缺少了立體空間的剖析能力，
焊錫速度只是一個片面的數字，
了解精準溫控和自動檢測才能成功的創造出一種效率。
沒有經歷嚴格的熱力推演設定檢測，
再漂亮的焊點也無法制作出精準的絲度。
只有不斷的研究焊接和送錫，
才能實現更完美的工藝創新。
真正讓人滿意的焊錫機，絕不只是外表，
還有讓人無法質疑的直通率，
是熱情是知識是細節的工藝精神，
讓每一臺焊錫機擁有焊錫的靈魂。
專業團隊——技術毋庸置疑
Professional Team——Technology is unquestionable
1.銳馳焊錫機-主體結構示意圖
RuiChi Intelligent Soldering Robot —Products and specification
R351 標準智能焊錫機器人
R351 Standard Intelligent Soldering Robot

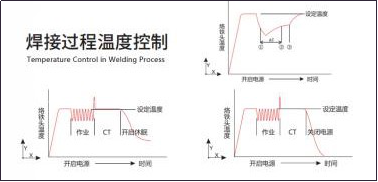

2.溫控——快 準 狠
Temperature Control——fast、strong and precise
*15s即可精準的達到指定溫度，快速、穩定；
It can reach the specified temperature accurately in 15 seconds，fast & steady；
*焊錫后，回溫時間可忽略不計，讓焊錫更高效；
After soldering，The rewarming time is negligible，To make the solder more efficient；
*智能狀態識別，長時間未發生運行指令時，系統自動進入低功耗的休眠狀態，節能，減輕烙鐵頭氧化；
Intelligent state recognition，when the program detects that the device has no running commend occurs for a long time，and the system enters a low power sleep state automatically to save energy & reduce the oxidation of the solder iron tips；

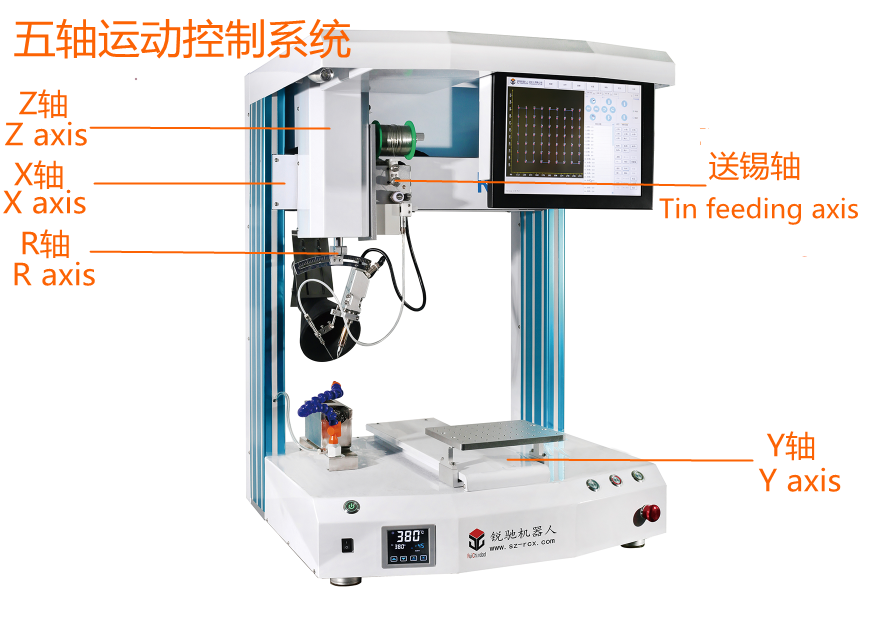

3.五軸運動控制系統——靈活 高效
5-axis motion control system——Flexible、high-efficiency
* 用六軸控制卡實現五軸運動系統，X軸、Y軸、Z軸、R旋轉軸、送錫軸；
Six-axis motion control card for 5-axis motion control system，X axis、Y axis、Z axis、R rotation axis、one for tin feeding；
* 獨立運動軸，可在運動控制器上直接運行程序，靈活，全軌道同時運作，效率高；
Independent motion axis，program can be run directly on motion controller，flexible，All-axis simultaneous operation，high-efficiency.
* 可二次開發，給未來新軸向留有充足空間；
Allow secondary development，Leave plenty of room for a new axis of the future；

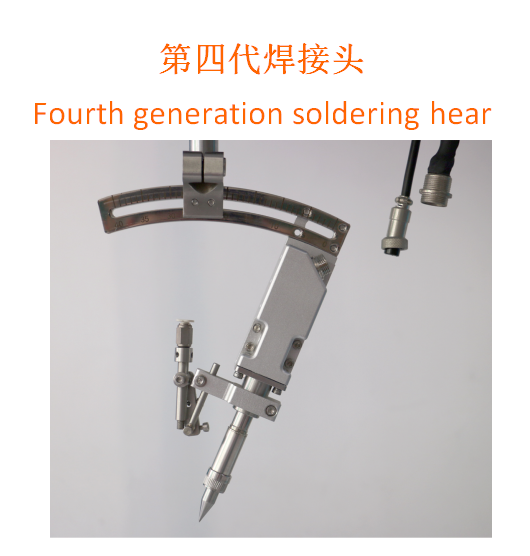

* 第四代焊接頭，R軸0-360°全方位旋轉，帶有氣缸緩沖裝置，能在合適的位置進行最核心操作；
Fourth generation soldering system，the R axis can rotate 0-360 degrees in all directions，with a cylinder bumper, to perform the most core operations in the right place.
4.焊錫系統——接軌時代
Development of soldering system—conform to the age
* 基于windows進行自主研發的焊錫系統。
Self-developed solder system based on windowS based on Windows OS.
1.熟悉的電腦操作模式，上手快，節約時間及人工成本；
Familiar computer operating mode，get started quickly, saving time and labor costs；
2.簡約并不是簡單，界面簡潔，功能齊全；
Concise but not simple，simple interface but Fully functional；
3.可根據客戶需求提供定制化服務；
Customized services can be provided according to customer’s needs；

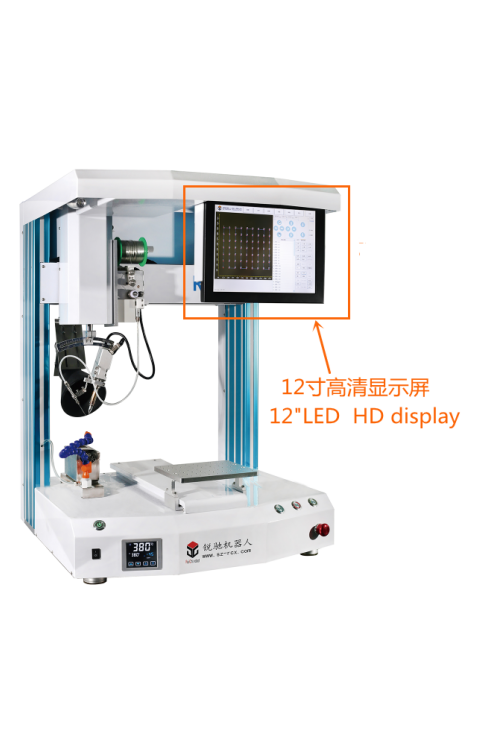

* 搭配12寸高清觸摸屏，可視化大屏幕，各種參數一目了然。
With a 12-inch HD touch screen, visualized big screen with a variety of parameters at a glance.

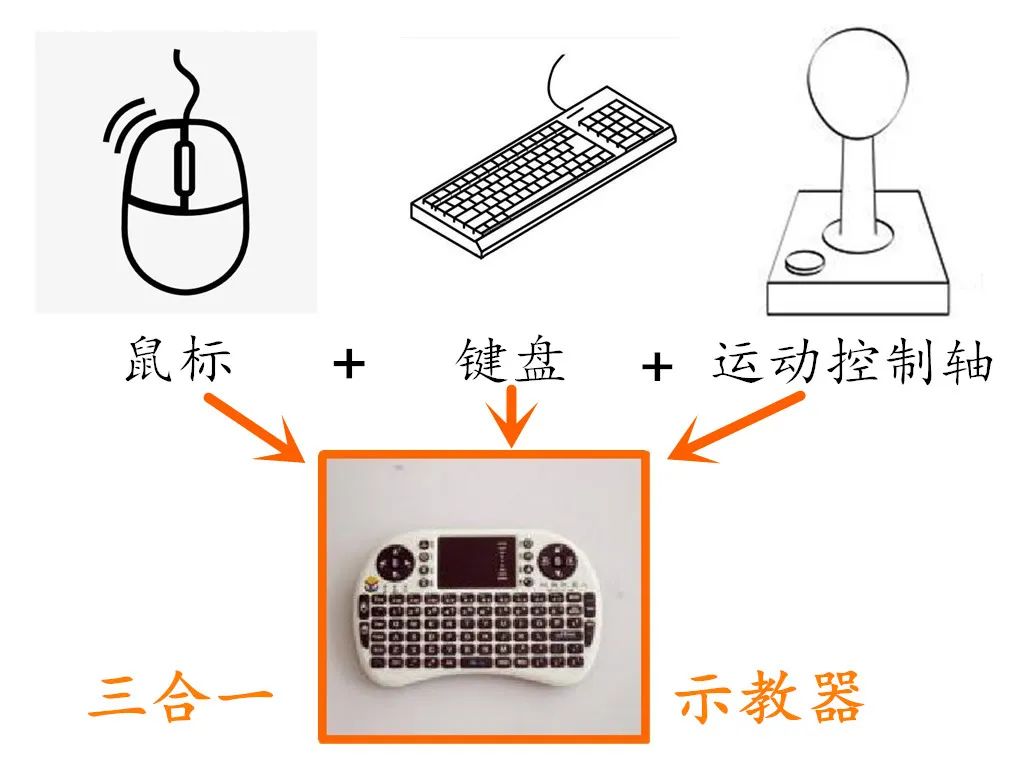

* 結合鼠標+鍵盤+運動控制軸為一體的三合一無線示教器，讓操作更簡單。
The three-in-one wireless teaching device, which combines the mouse and keyboard with the motion control axis, makes the operation easier.
* 工控電腦，16G/32G，內存大。
Industrial computer, 16G / 32G, large memory。
* 實現實時監控的自檢系統，做到焊錫無憂。
Realize real-time monitoring of the self-test system, so that the solder worry-free.

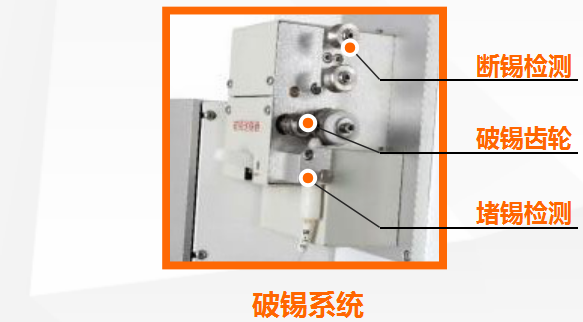

5.破錫系統-特殊處理方式
Breaking tin system—special breaking tin treatment
采用特殊的破錫處理方法
Special tin-breaking treatment methods are used
*極少出現虛焊、漏焊，大塊焊渣，大塊錫渣，焊錫飛濺、錫珠等情況；
Few cases of virtual welding，leakage welding，large pieces of tin slag，solder splash，tin beads，etc；
*減少了PCB板的雜質，大大提高了產品的質量；
Reduces impurities in PCB boards and greatly improves product quality；
(送錫器可選配破錫系統/不破錫系統）
（Optional for the solder feeser：with or without tin breaking）

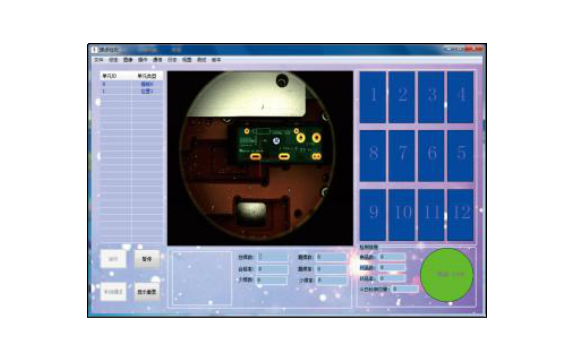

6.AOI焊錫檢測——質量把關一體機
AOI Solder Detection Intelligent Robot— Quality control all-in-one machine
可升級為AOI焊錫檢測一體機
Can be upgraded to AOI Soldering inspection machine
*運用光學自動檢測（AOI）技術，
通過攝像頭自動掃描PCB板，采集圖片，
把焊點與數據庫中合格參數進行對比，
實時監控焊錫質量，對連錫、多錫、少錫、漏錫快速準確檢出， 讓焊錫更放心。
The use of automatic optical inspection (AOI) technology,
to scan PCB board by camera automatically, collect pictures,
welding point and database qualified parameters for comparison,
real-time monitoring of solder quality, tin-connection, multi-tin, little tin, leaky tin quickly and accurately check out to make the solder more assured.

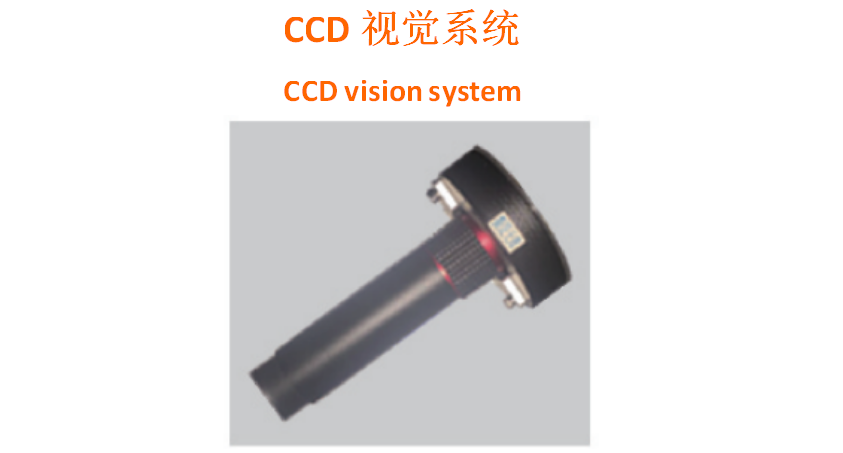

7.CCD定位功能——高效 省心
Intelligent soldering Robot with CCD positioning—efficiency、worry-thy-mind
*擁有適應PCB焊錫治具的發明專利；
Patent for Invention；
*自動修正治具與產品偏移，超高精度定位；
Automatically correct the fixtures and product offsets,ultra-high precision positioning；
*CCD定位功能已寫入焊錫系統，拍照即可對焊點進行實時定位，準確識別MARK點，讓焊錫更省心。（客戶可根據需求，后期再加裝鏡頭。）
CCD positioning function has been written to the solder system, solder joint can be real-time positioned by taking a photo and MARK point can be identificated accurately, to make the solder much easier.(Camera can be added later according to customer’sdemand.)

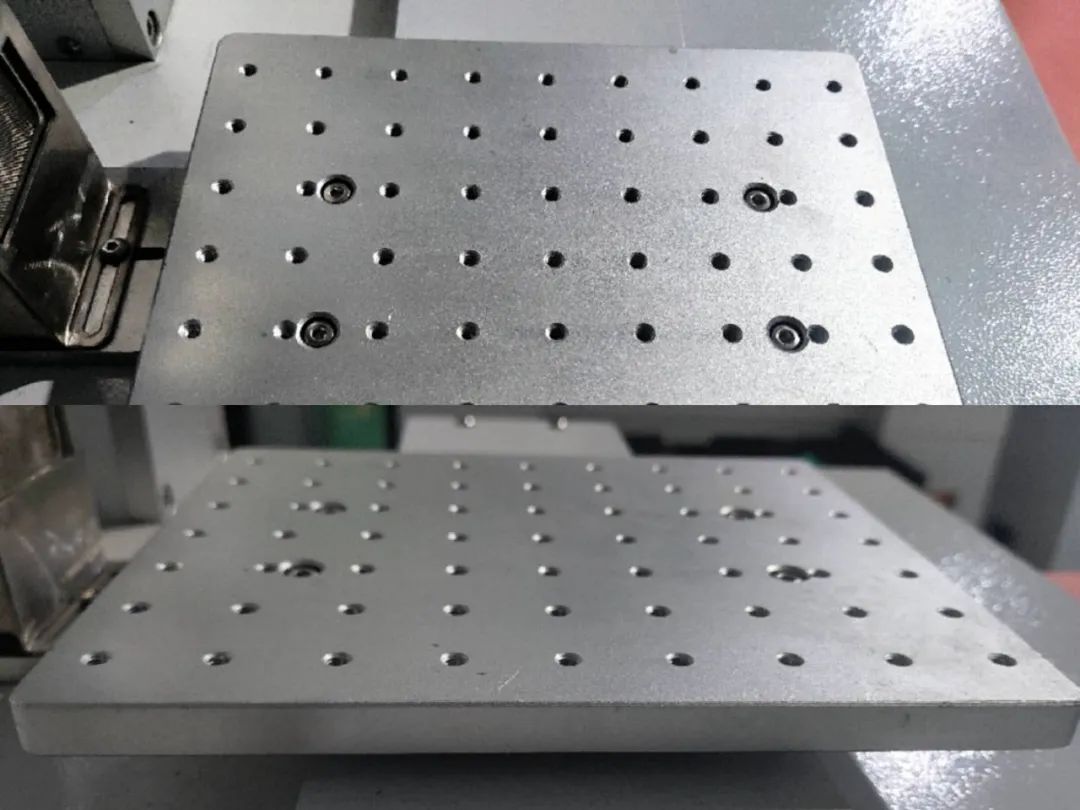

8. 氧化鋁板——20mm超厚
Alumina plate——20mm extra thick
* 20mm氧化鋁板，結實、牢固、保證機器運行穩定。
20mm alumina plate, strong, solid, to ensure the stable operation of the machine.
*耐高溫、耐腐蝕、不易生銹、使用壽命長。
High temperature resistance, corrosion resistance, no rusting, long service life.

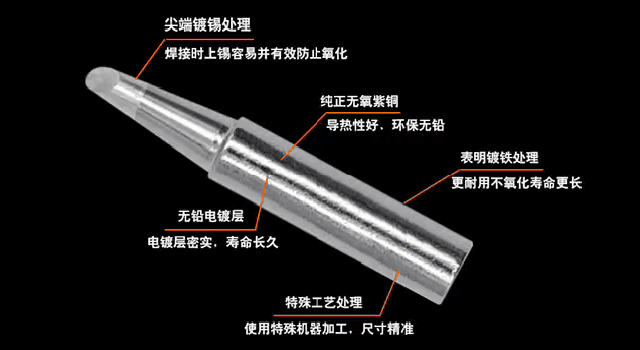

9.一個烙鐵頭的藝術之旅
The Art of a solder iron tips
銳馳烙鐵頭，28道工序沉淀。
傾注更多心血，造就不一樣的體驗。
采用特殊波形電源的鍍鐵工藝，
并在鐵、鎳、鉻來回6次電鍍的極致追求中，
賦予0.08mm的鍍層以力量，
讓純正無氧紫銅煥發新活力，
花費的是時間，成就的是品質。
RuiChi solder iron tips, 28 process precipitation.
Pour more effort into creating a different experience.
Iron plating with special waveform power supplies,
And in the iron, nickel, branding back and forth 6 times in the extreme pursuit of plating,
Give 0.08mm plating strength,
Revitalise pure oxygen-free copper,
It takes time, it's quality.
專業的服務與支持
Professional service and support
銳馳-全渠道服務
Full channel service
1. 線下:工程師上門一對一服務；
Offline:engineer-to-door for one-to-one service；
2. 線上:銳馳微信公眾號、官網一鍵咨詢；
Online：RuiChi WeChat public account & official website for one-click consultant；
公眾號：RuiChiRobot
WeChat public account：RuiChiRobot
官 網：www.s z-rcx.com
Official website：www.s z-rcx.com
3. 電話:7*24小時人工服務；
Telephone：7*24 hours manual service；
0755-23029900
深圳+86-13530563928 蘇州+86-13530538218
1. 根據實際情況，現場考察、取樣分析，為您提供專業的自動化車間解決方案，量身定制最適合您的機器。
According to the actual situation, on-site inspection, sampling analysis, to provide you with professional automation workshop solutions, tailor-made for your machine.
2. 我們還提供免費試機服務，為您放下顧慮和擔憂。
We also provide free test service for you to put aside your worries and worries.
3.免費軟件升級，免費系統技術培訓。
Free software upgrade, free system technical training.
4.另外，質保無憂，享有一年超長保質期。
In addition, the quality assurance is worry-free, with a one-year long warranty period
*一年有質量問題可免費換新機；
Free replacement for a year with quality problems.
RuiChi Intelligent Soldering Robot
—present you with more choices
懸臂式、落地式、雙頭、單頭、雙工位、單工位...
Cantilever、floor-to-ceilin、 double-head、single-head、double station、single station...
我司還有螺絲鎖付、點膠、插件、檢測、六軸機器人、選擇性波峰焊、激光焊、等多款機器產品，覆蓋各個領域。若對產品感興趣，可隨時和我們聯系。
Our Company also has screw lock, dosing, plug-ins, testing, six-axis robots, selective wave welding, laser welding, and many other products, covering all areas. If you are interested in our products, you can contact us at any time.
